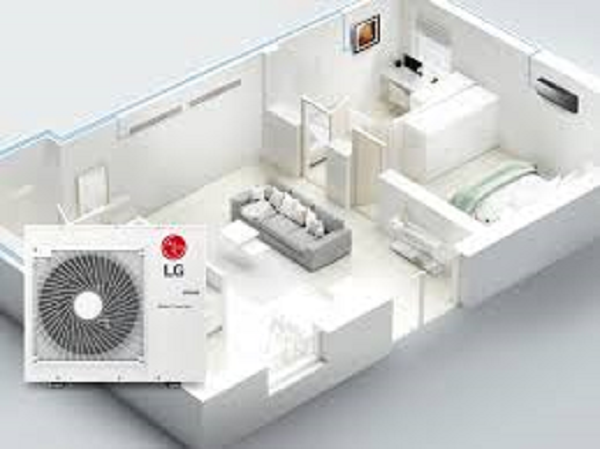

What Is A Multi-Head Split System?
A multi split air conditioner is a type of air conditioning system comprising multiple indoor units connected to a single outdoor unit. Each indoor unit can be independently controlled, allowing different rooms or zones to be cooled or heated to different temperatures simultaneously. This system is commonly used in buildings where installing ductwork for a central air conditioning system is not feasible or desirable. It offers flexibility and energy efficiency, as only the rooms that need cooling or heating are operated at any given time.
How Does A Multi-Split System Function?
A multi head split system air conditioner works by using a single outdoor unit connected to multiple indoor units. Here’s how it typically operates:
Outdoor Unit
The outdoor unit contains the compressor, condenser, and expansion valve. It circulates refrigerant through a series of pipes to the indoor units.
Indoor Units
Each indoor unit is installed in a separate room or zone. These units contain an evaporator coil and a fan. When activated, they draw warm air from the room, pass it over the cold evaporator coil, and blow the cooled air back into the room.
Refrigerant Flow
The refrigerant flows between the outdoor unit and the indoor units through insulated pipes. In the outdoor unit, it absorbs heat from the indoor air, becomes a high-pressure gas, and is pumped to the indoor units. Inside, it releases heat, becomes a low-pressure liquid, and is sent back to the outdoor unit to repeat the cycle.
Individual Control
Each indoor unit can be controlled independently, allowing different rooms or zones to be cooled or heated to different temperatures according to occupants’ preferences.
Energy Efficiency
Multi split air conditioners offer energy efficiency by allowing users to only cool or heat the rooms that are in use, rather than conditioning the entire building.
Pros And Cons Of Multi-Head Split System
Here are the pros and cons of Multi Head Split Systems in bullet points:
Pros:
- Individual control for each indoor unit
- Flexibility in installation
- Zoning capabilities for targeted cooling/heating
- Easy installation, especially in existing buildings
- Cost-effectiveness, particularly for smaller spaces
- Aesthetic indoor unit designs
Cons:
- Visible indoor units may affect the aesthetics of the multi split air conditioner.
- Limited capacity compared to ducted systems
- Outdoor unit noise during operation
- Regular maintenance is required for optimal performance
- Potential for efficiency loss if improperly installed
Comparing Multi Split Air Conditioner And Ducted System
Multi Head Split System and Ducted Systems are both types of air conditioning systems used in buildings, but they differ in several key aspects:
Installation and Design:
Multi-Head Split System:
A multi split system air conditioner system consists of multiple indoor units connected to a single outdoor unit. The indoor units are typically mounted on walls or ceilings in individual rooms or zones. Installation of a multi-head split system is relatively straightforward and does not require extensive ductwork.
Ducted System:
Ducted systems, on the other hand, use a central indoor unit connected to a network of ducts installed throughout the building. Air is distributed through vents in the ceiling or walls of each room. Installing a ducted system requires careful planning and construction to accommodate the ductwork.
Flexibility:
Multi Head Split System:
It offers flexibility as each indoor unit can be controlled independently, allowing different rooms or zones to be cooled or heated to different temperatures according to occupants’ preferences.
Ducted System:
Provides centralised control over the entire building, with the ability to set consistent temperatures throughout different areas. However, individual room control may be limited unless additional zoning systems are installed.
Efficiency:
Multi Head Split System:
Offers energy efficiency by allowing users to only cool or heat the rooms that are in use, rather than conditioning the entire building.
Ducted System:
This can be more energy-efficient than multi-head split systems in larger buildings, as they can be designed to distribute air more evenly and efficiently throughout the space.
Cost:
Multi-Head Split System:
Typically, the initial cost of a multi-split air conditioner is lower than that of a ducted system, especially for smaller buildings or individual rooms.
Ducted System:
While ducted systems may have a higher initial cost due to installation and ductwork, they can provide long-term savings in energy costs, especially for larger buildings with more extensive cooling or heating needs.
Contact Us Now To Learn More
Tips For Reducing Running Costs
Here are five tips to help reduce running costs for a multi-split air conditioner:
1. Regular Maintenance:
Keep your air conditioner clean and well-maintained. This includes cleaning or replacing filters regularly, checking for leaks in the ductwork, and ensuring that the outdoor unit is free from debris.
2. Optimise Temperature Settings:
Set your thermostat to an optimal temperature for comfort, typically around 78°F (25°C) during the summer months. Avoid setting it too low, as each degree lower can significantly increase energy consumption.
3. Use Fans:
Supplement your air conditioner with ceiling fans or portable fans to help circulate cool air more efficiently. Fans can make a room feel cooler without the need to lower the thermostat setting on your air conditioner.
4. Seal Leaks and Insulate:
Make sure windows and doors are properly sealed to prevent cool air from escaping and warm air from entering. Additionally, ensure that your home is well-insulated to maintain a consistent temperature, reducing the workload on your air conditioner.
5. Utilise Programmable Thermostats:
Install a programmable thermostat to automatically adjust the temperature based on your schedule. This can help avoid unnecessary cooling when you’re not at home or asleep, ultimately saving energy and reducing costs.
